CISSOID, a leader in rugged power semiconductor solutions, following the earlier introduction of its new families of industry standard power modules, today announced the expansion of its standard product offerings with the release of the CMT-PLA1BL12300MA. This new 1200V/300A Half-Bridge IGBT Power Module combines advanced switching technology with a widely adopted industry standard package, providing a highly reliable and cost-effective solution for a broad range of industrial power conversion systems.

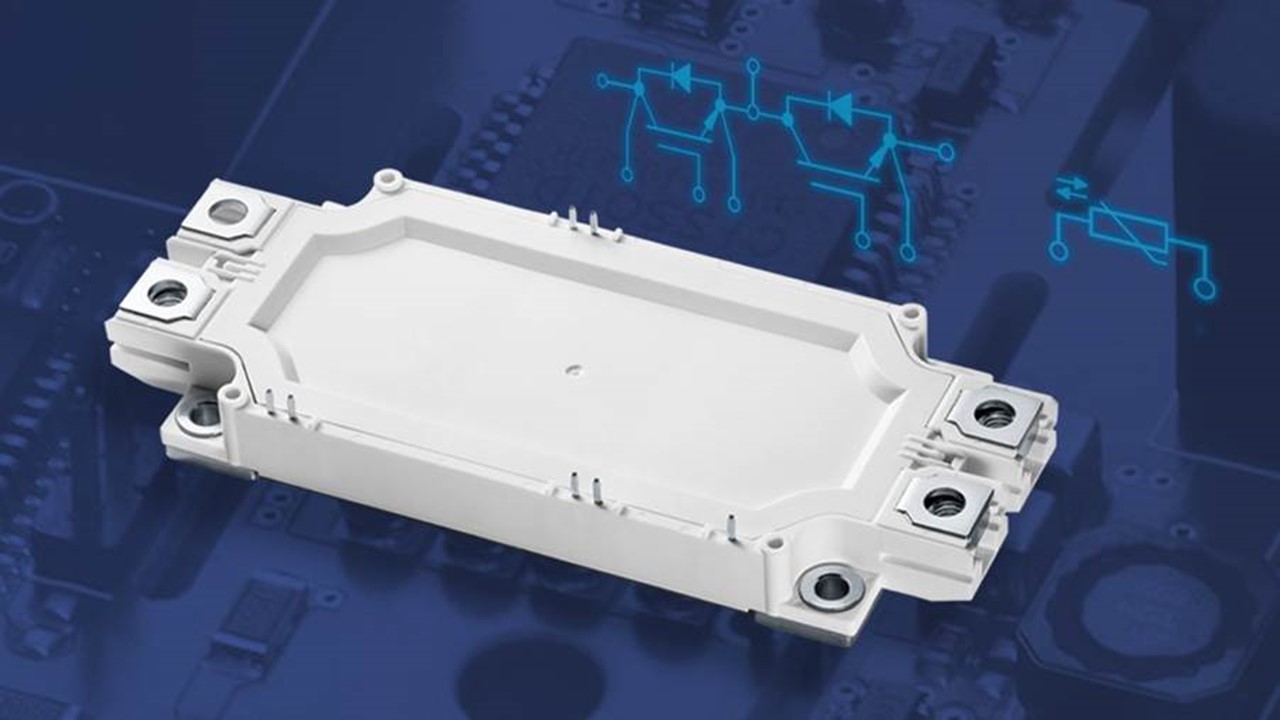

The introduction of this new IGBT module strengthens the CISSOID portfolio with a solution available in the industry-standard CPAK-EDC package, delivering enhanced mechanical robustness and drop-in compatibility. This approach not only makes upgrades seamless but also adds greater design freedom, allowing system architects to balance performance and efficiency versus cost and mechanical integration more effectively. With this latest addition, CISSOID continues to provide designers with the trusted building blocks needed to accelerate innovation in electric drive systems and power conversion.
The CMT-PLA1BL12300MA is engineered to optimise efficiency and reliability in high frequency switching and high-performance industrial applications, such as UPS systems, motor and motion control solutions, and power supplies. Utilising advanced Trench Gate Field Stop (TG-FS) IGBT technology, the module delivers a superior balance between switching speed and conduction losses, with excellent short-circuit behaviour for robust operation under fault conditions. Its freewheeling diode provides very high surge capability, supporting demanding transient and overload events, while the module’s market-leading thermal conductance helps move heat out fast, boosting power density and extending lifetime margins. Housed in the industry-standard CPAK-EDC package, it offers a drop-in solution that balances electrical performance with ease of integration, enabling seamless upgrades to existing platforms.
Key Benefits:
- High Efficiency: Features low saturation voltage and optimised switching to minimize power dissipation.
- Robust Performance: Capable of handling continuous currents up to 450A with extended temperature margins for operational safety.
- Seamless Integration: The industry-standard package ensures drop-in compatibility for easy system upgrades.
- Reduced EMI: Integrated diode technology provides fast and soft reverse recovery, simplifying system design.
Key Technical Features:
- Configuration: 1200V / 300A Half-Bridge IGBT Power Module.
- Robust Current Handling: Rated for 450A continuous DC current (@ Tj=90°C)
- Low saturation voltage:
Vce_sat= 1.56V (@ Ic=300A, Tj=25°C) / Vce_sat= 1.78V (@ Ic=300A, Tj=150°C) - Low switching losses:
Eon= 34mJ / Eoff= 34.5mJ (@ Tj=150°C) - Low thermal resistance:
Rth_jc = 0.065°C/W (IGBT) / 0.1°C/W (diode)
Availability: The CMT-PLA1BL12300MA is available for order now. For more information and full datasheets, please visit: www.cissoid.com/products/igbt/igbt-power-modules
